Trifold Brochure Design: Panel Layout, Structure and Best Practices

What a trifold brochure is

A trifold brochure is one sheet folded twice to create three vertical sections and six panels—three on the outside and three on the inside. Readers meet the front cover first, open to reveal the inside spread, and usually finish on the back panel where contact details live.

For a wider look at brochure formats beyond tri-fold layouts, see the brochure designs overview. For screen-first materials, compare this with digital brochure design.

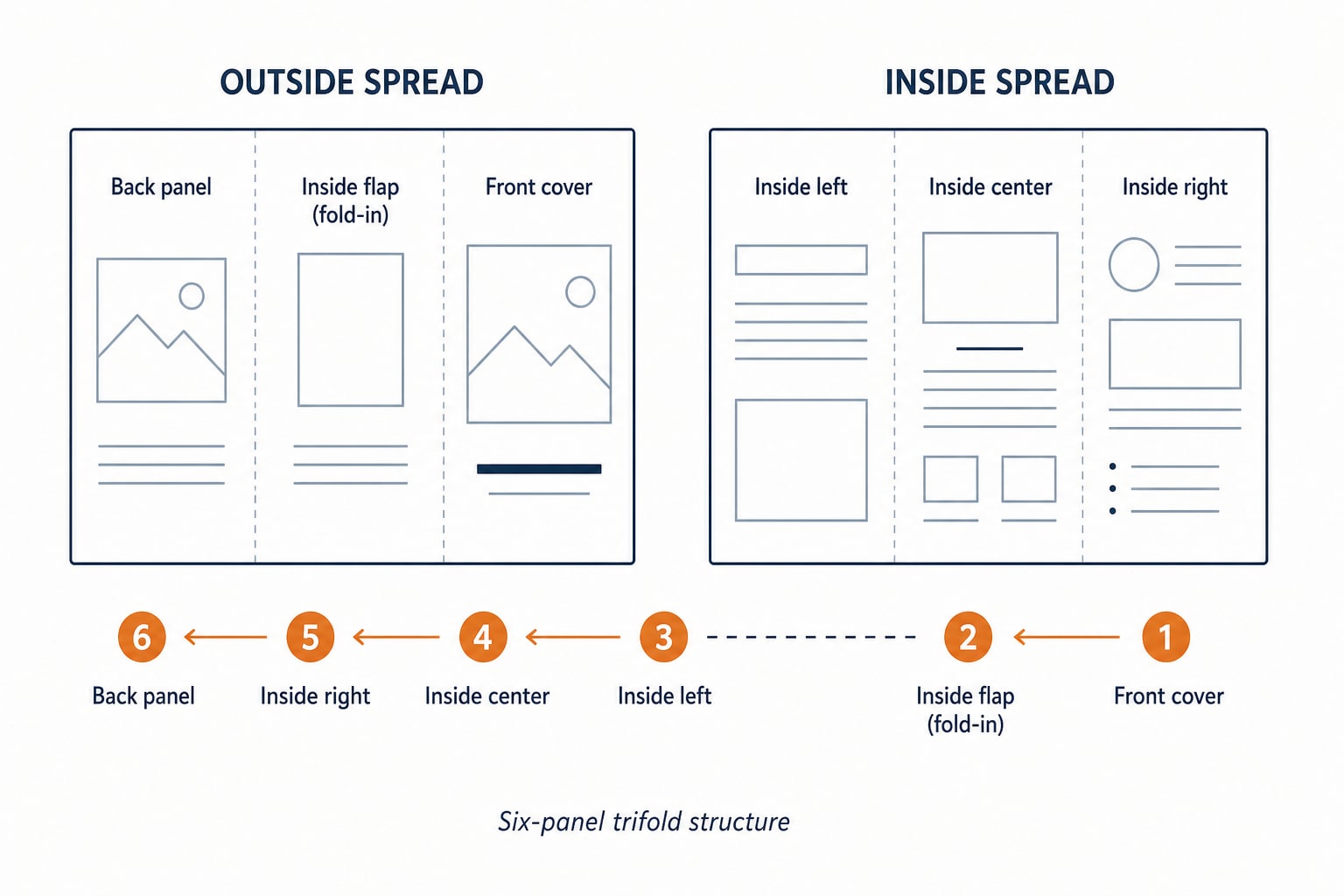

Six panels: outside vs inside

Design as two spreads, not six unrelated rectangles. The outside spread is what you see when the piece is closed or partially opened. The inside spread is the three-panel story that appears when both folds are open.

Outside spread

1. Front cover: brand, audience cue and reason to open
2. Fold-in panel (inside flap): short teaser, overview or first supporting point revealed early in the open sequence
3. Back panel: contact details, location cues, QR/web and a clear next step

Inside spread

1. Inside left: context, problem or “how it works” start
2. Inside center: core offer, proof or main detail block
3. Inside right: benefits, packages or the bridge toward action

Exact left/right panel order on the printed outside can vary with how the sheet is imposed. Confirm panel order with your printer’s template before locking type and photos.

Panel order and reading flow

A common reader path is: cover → fold-in flap → inside left → center → right → back. Give each step one job. If every panel repeats the same headline idea, the folds stop adding value.

• One primary cover message—not a wall of claims
• Inside panels that read left to right as a sequence
• Cross-panel headlines aligned so the open spread feels intentional
• Contact reserved for the back unless a light CTA appears earlier

Content hierarchy for each panel

Treat density carefully. Trifolds fail when panels become mini-essays. Prefer a short heading, one or two supporting sentences, and scannable bullets or icons. Leave room for the crease and for the eye to rest.

• Cover: brand mark, headline, optional short subhead and one strong visual
• Fold-in: quick value list, “what’s inside,” or a light introduction
• Inside: details broken into three steps, services or feature groups
• Back: phone, email, web/QR, address if needed and a single CTA

Typography, imagery and spacing

• Use one heading style and one readable body size across panels
• Keep long paragraphs off the cover and fold-in
• Choose print-ready images; soft web photos show up quickly on paper
• Align columns and baseline grids so inside panels feel related
• Maintain even gutters; crowded panels look cheaper than sparse ones

CTA and contact placement

Put the fullest contact block on the back panel. You can add a lighter prompt earlier (for example, “See packages inside”), but avoid repeating a large phone block on every panel. QR codes work well on the back when print quality and quiet space around the code are protected.

Fold-safe zones, bleed and print prep

Keep logos, thin rules and small type away from fold lines and trim edges. Extend background color past the trim into a bleed zone when your printer asks for it, and keep essential content inside a safe margin. Confirm sheet size, fold orientation and panel widths before final export—printer templates beat guessing.

• Common unfinished sizes include letter (8.5 × 11 in), legal (8.5 × 14 in) and tabloid (11 × 17 in)
• Ask about CMYK, paper stock and whether folds run parallel to the short or long edge
• Export print PDFs with fonts embedded or outlined as required
• Proof a folded paper dummy before a large print run

Pre-design checklist

1. Define the reader’s one next step
2. Map one idea per panel
3. Write short cover copy before designing decoration
4. List must-have contact fields for the back
5. Gather brand colors, fonts and approved photos
6. Obtain the printer’s flat template and fold marks

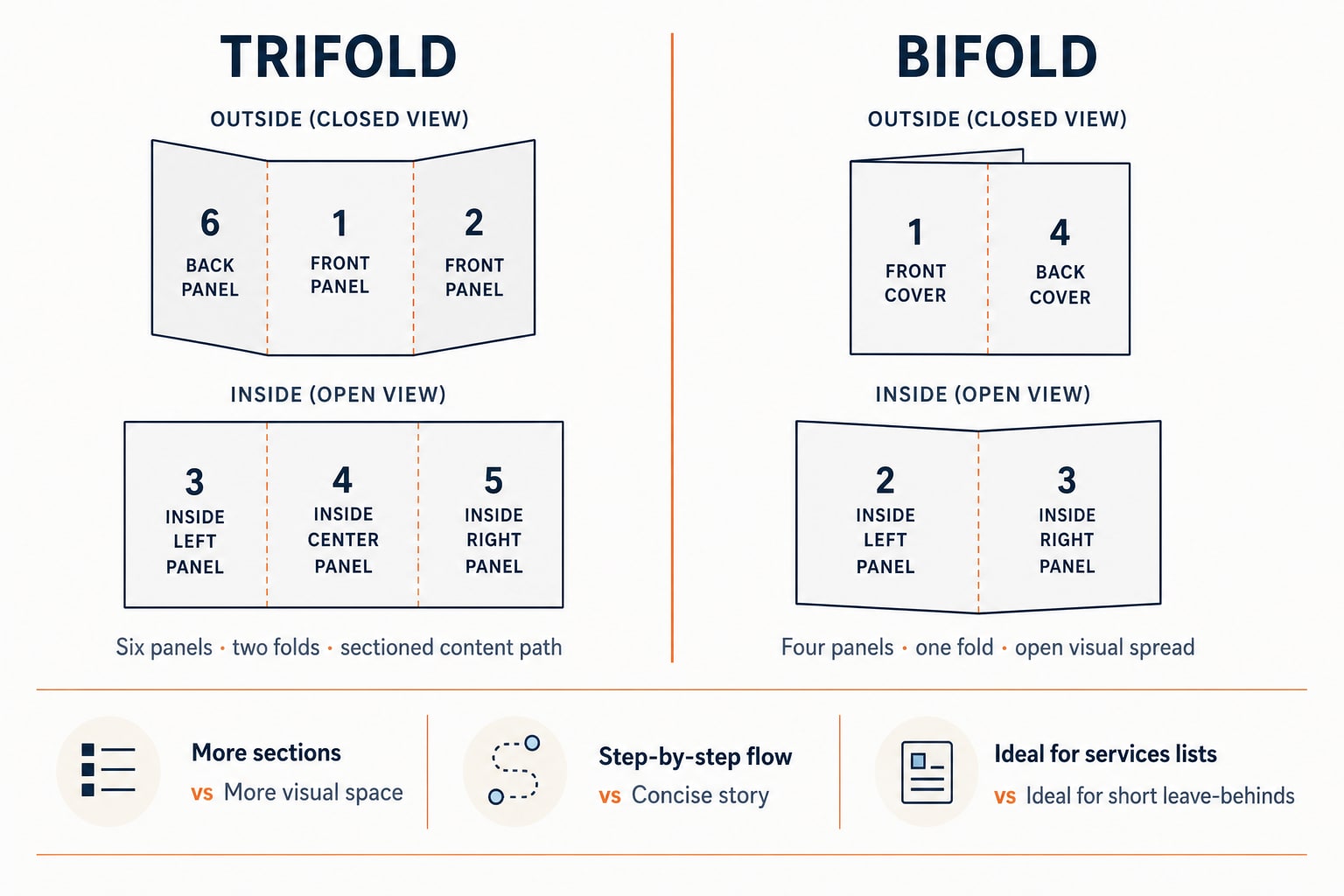

Trifold vs bifold: when each works

Choose trifold when you need more sections—service lists, itineraries, multi-offer breakdowns or a step-by-step path. Choose bifold when the story is shorter and more visual. Compare four-panel structure in the bifold brochures guide before locking a format.

When a trifold brochure works best

• Trade-show leave-behinds with several service groups
• Clinic, school or nonprofit program overviews
• Restaurant or venue inserts with short category lists
• Real estate or tourism pieces that benefit from sequence
• Company profiles that need more than a four-panel bifold

For more creative directions after the structure is set, browse digital brochure design ideas.

Common trifold mistakes

• Text and logos sitting on the fold crease
• Cover overloaded with bullet lists and contact noise
• Uneven panel density—one packed panel next to an empty one
• Low-resolution images that look soft in print
• Missing or hard-to-find contact details on the back
• Wrong panel order after print because the template was never checked

When professional brochure help is useful

Outside design support helps when brand systems must stay consistent, when multiple stakeholders need a clear panel map, or when print imposition feels unfamiliar. See finished layout quality in the design portfolio, how projects typically move in our process, and commercial brochure options under brochure designing and business brochure design.

Conclusion

Effective trifold brochure design is panel strategy first, decoration second. Assign roles to the six panels, protect folds and trim, keep hierarchy scannable and put the clearest next step on the back. This article stays educational; production-focused brochure work belongs on the service pages when you need layout and print support.
